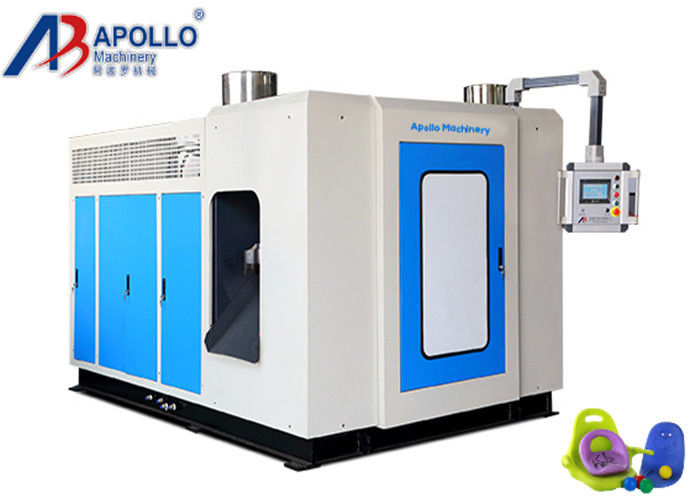

Baby colorful chair plasitc extrusion HDPE blow molding machine

Our company, ZHANGJIAGANG ABC MACHINERY CO., LTD., located in the city of ZHANGJIAGANG, which lies conveniently near to the biggest city of China. Our company was founded in 2007, occupy an area of 8000 square meters and annual production capacity currently stands at more than 100 sets. As a professional  manufacturer of automatic blow molding machines, we can make many kinds of hollow plastic products inculding bottles, kettles, jerry cans, vessels, toolboxes, toys, seats and plastic items for automobiles and can be made with capacities from 5ml to 5000L.

This type of blow molding machine ABLB75II can produce milk bottles, cosmetic bottles,medical bottles,plastic balls,tube, plastic cans, containers, tools, toys, and other products. Pictures as blow:

Basic installation including

• Die head: Center-feed die head
• Extrusion system: Adopt world-famous brand automatic temperature controlling device. Drive the screw with electromagnetism motor reducer to realize stepless regulating.
• Clamping device: Adopt bi-directional synchronous clamping device with double axis single cylinder to stabilize equipment well
• Blowing device: with upper blowing type
• Hydraulic system: The whole hydraulic system adopts world-famous brand controlling components and proportional controlling circle.
• Electric controlling system: Adopt programmable controller made in Mitisubishi , Japan. Every electric component is of world-famous brand.
• Technical Parameters: ( ABLB75II)

• Max. Product volume8	8 liters
  Screw diameter	75mm
  Screw L/D ratio	24 L/D
  Screw drive power	22KW
  Screw heating capacity	7-8KW
  No.of heating zone	4 zones
  Output of HDPE	100KG/H
  Oil pump drive power	7.5 KW
  Clamping force	80KN
  Max.size of mold	400x430mm
  Mold stroke	170-520mm
  Template size	380 X 420mm
  Max.die diameter	170mm
  Blowing pressure	0.6 mpa
  Air Volume	0.8M³/MIN
  Cooling water pressure	0.3mpa
  Water consumption	80L/MIN
  Size of Machine	4.2x2.2x2.7m
  Weight of machine	7.5ton

  The main components of the machine. ( ABLB75II)

  electronic parts
  Name	Trader
  Micro computer control system	WIRETECH from TAIWAN/MUTISUBISHI
  Temperature Controller	WIRETECH from TAIWAN/MUTISUBISHI
  Auxiliary Relay	OMRON
  contactor	Schneider from France
  Electric motor	Schneider from France Three phase 380V
  Power Source	TAIWAN MEANWELL
  Transducer	ABB from Switzerland
  hydraulic parts
  Name	Trader
  Oil pump	HIGH-TECH
  Valve	YUKEN
  Sealed part	HALLITE
  air control system
  Name	Trader
  Cylinder	AIRTAC
  Air Valve	AIRTAC
